Mineral Processing Platform with Integrated Slurry Collection and Gold Recovery
A Practical Design for Efficient, Clean, and Low-Cost Gold Processing
One of the greatest challenges in small-scale and medium-scale gold mining is not necessarily crushing or grinding the ore—it is preventing the loss of valuable mineral-bearing slurry during processing. Every transfer between machines, every bucket of ore, every hose connection, and every maintenance activity creates opportunities for gold-bearing material to spill onto the ground. Once slurry enters the soil, recovering the contained gold becomes nearly impossible, while the surrounding area gradually becomes contaminated with tailings and fine sediments.
To address this problem, the Start Your Own Gold Mine Program has developed a specialized mineral processing platform that combines the working area, drainage system, and spill recovery into one integrated structure. Instead of treating accidental spills as waste, the entire platform is engineered so that every drop of slurry is collected by gravity and directed toward a recovery point where additional gold can be recovered before water leaves the processing area.
This concept transforms the processing floor itself into an active component of the mineral recovery system.
General Design Concept
The platform consists of a reinforced concrete slab surrounded by raised berms. Along the perimeter and through the center of the platform are shallow drainage channels that continuously collect spilled slurry and wash water.
The entire slab is constructed with a gentle slope toward a single discharge point. Any slurry escaping from processing equipment naturally flows by gravity into the drainage channels and is transported toward a collection sump or additional recovery system.
The platform therefore serves multiple functions simultaneously:
- a stable foundation for processing equipment,
- a containment structure preventing environmental contamination,
- a drainage system,
- a spill recovery system,
- an additional gold recovery stage.
Unlike conventional processing areas where slurry often infiltrates the surrounding soil, this design ensures that virtually all material remains inside a controlled processing environment.
Overall Layout

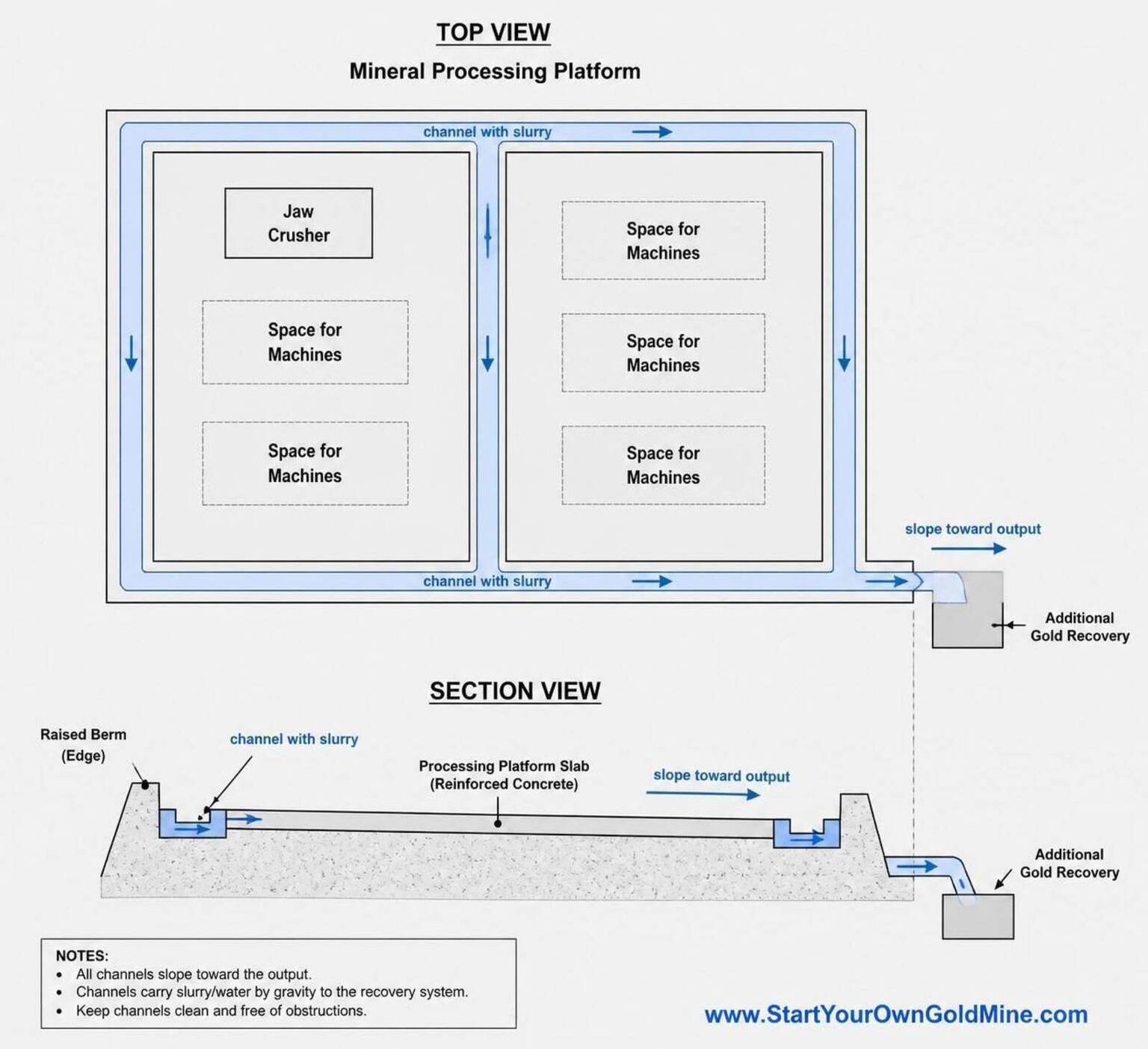

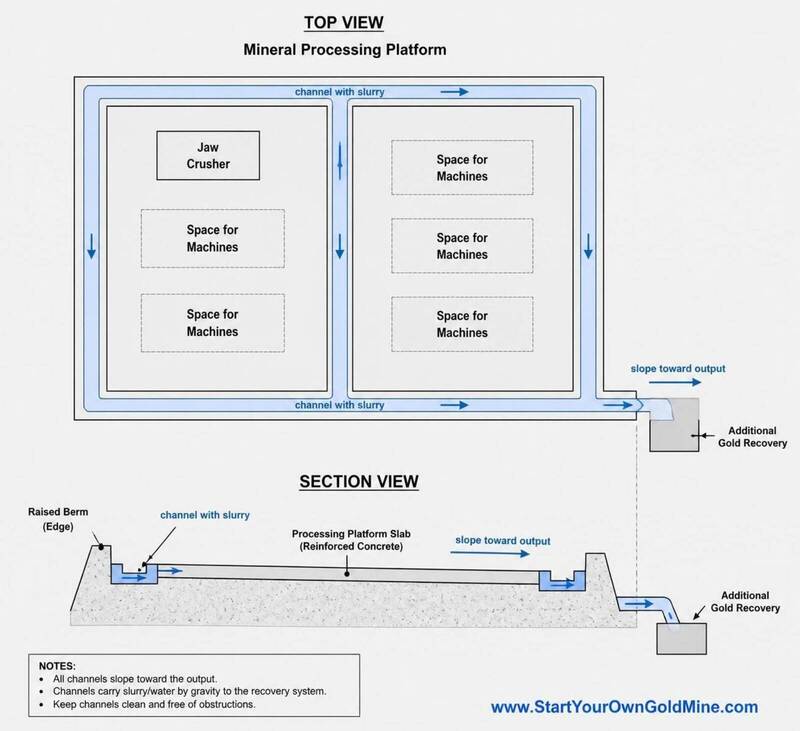

The top view of the platform illustrates two primary processing areas separated by a central drainage channel. Around the outside perimeter runs another continuous channel connected to the same outlet.
The equipment can be arranged according to operational requirements. In the example shown, the jaw crusher occupies one section, while additional spaces are reserved for grinding mills, concentrators, pumps, screens, or other processing equipment.
Regardless of the machine arrangement, every location on the platform remains within a short drainage distance of a collection channel.
This minimizes the possibility of slurry accumulating on the working surface.
Reinforced Concrete Processing Slab
The entire processing area is built on reinforced concrete.
Concrete offers numerous advantages:
- high load-bearing capacity,
- resistance to abrasion,
- ease of cleaning,
- long service life,
- excellent containment of slurry,
- compatibility with heavy mining equipment.
Because crushing and grinding equipment generate significant dynamic loads, reinforcement should be designed according to the anticipated equipment weight and foundation requirements.
Where heavy machinery such as jaw crushers or impact mills are installed, local thickening of the slab may be desirable to distribute concentrated loads.
Raised Perimeter Berm
Around the outer edge of the platform is a raised concrete berm.
The berm performs several important functions.
First, it prevents slurry from flowing off the platform during routine operation.
Second, it contains wash water used during equipment cleaning.
Third, it prevents accidental overflows caused by hose failures or operator error from contaminating the surrounding ground.
During heavy rainfall, the berm also provides temporary storage until water reaches the designated outlet.
This simple structural feature significantly improves environmental protection.
Integrated Drainage Channels
The drainage channels represent the most distinctive feature of the design.
Instead of allowing slurry to spread randomly across the floor, the channels immediately capture flowing material and transport it toward the recovery point.
The channels operate entirely by gravity.
No pumps are required.
No moving parts exist.
Maintenance requirements remain minimal.
The perimeter channel collects material reaching the outside edges of the platform.
The central channel shortens drainage distances for machines located near the middle of the processing area.
Without this central drain, slurry originating in the center would need to travel much farther before reaching a collection point.
The combination of central and perimeter channels creates efficient hydraulic coverage of the entire slab.
Gravity Flow
The platform itself is constructed with a gentle slope toward the outlet.
Rather than transporting slurry by mechanical means, gravity performs the work continuously.
This approach offers several advantages:
- no electrical power consumption,
- no pumps,
- no pump maintenance,
- continuous drainage,
- reduced operating costs,
- improved reliability.
Gravity remains the simplest and most dependable method of slurry transport whenever topography permits.
Even during equipment washing or heavy cleaning operations, water naturally follows the designed drainage path.
Additional Gold Recovery
The drainage outlet discharges into an additional recovery unit rather than directly into waste disposal.
This is an important feature.
Experience in mineral processing plants worldwide has shown that floor drainage frequently contains surprisingly high concentrations of valuable minerals.
Gold particles lost during:
- ore feeding,
- crushing,
- grinding,
- sluicing,
- equipment maintenance,
- cleaning,
eventually accumulate in floor drains.
Instead of treating this material as waste, the Start Your Own Gold Mine platform directs all drainage toward an additional recovery stage where these valuable particles can be recovered.
Over months or years of operation, this additional recovery may represent a significant economic benefit.
Cleaner Working Environment
One of the major operational advantages is housekeeping.
Processing plants naturally generate mud, fine ore, water, and slurry.
Without organized drainage, operators spend considerable time shoveling accumulated material from random locations.
With this platform:
- wash water follows designated channels,
- slurry cannot spread uncontrollably,
- equipment cleaning becomes easier,
- maintenance areas remain cleaner,
- operators work in safer conditions.
Daily cleanup requires significantly less labor.
Environmental Protection
Environmental performance is greatly improved compared with conventional processing areas.
Instead of allowing mineral-bearing slurry to infiltrate surrounding soil, the entire process remains contained.
Benefits include:
- reduced soil contamination,
- lower sediment discharge,
- easier regulatory compliance,
- simplified waste management,
- recovery of spilled minerals instead of permanent loss.
The platform therefore contributes both economically and environmentally.
Flexibility of Equipment Arrangement
The design intentionally leaves open spaces for different processing machines.
Depending on the specific ore and processing method, the platform may accommodate:
- jaw crushers,
- impact mills,
- hammer mills,
- ball mills,
- roller mills,
- vibrating screens,
- centrifugal concentrators,
- shaking tables,
- flotation equipment,
- pumps,
- slurry tanks,
- classification equipment.
The arrangement may be modified without changing the drainage concept.
As long as machinery remains inside the processing slab, any accidental spill automatically enters the collection system.
Suggested Processing Sequence
A typical gold processing circuit may be arranged as follows:
- Jaw crusher
- Secondary crusher or impact mill
- Fine grinding mill
- Classification
- Gravity concentration
- Final concentration
- Tailings handling
Throughout this sequence, all spilled slurry remains contained within the platform.
Recommended Engineering Improvements
Although the platform is already highly practical, several engineering refinements would further improve performance.
Cross Slope
In addition to the longitudinal slope toward the outlet, the slab should incorporate a slight transverse slope toward the drainage channels.
A cross slope of approximately 1–2% prevents puddles from forming on the working surface and directs water more efficiently into the drains.
Rounded Channel Corners
Sharp internal corners encourage sediment accumulation.
Rounded corners improve hydraulic flow and reduce cleaning requirements.
Wider Channels
Channels should be wide enough to carry heavy mineral slurry without frequent blockage.
Generous channel dimensions also make manual cleaning easier.
Removable Steel Grates
Covering the channels with removable galvanized or stainless steel grates improves worker safety while preserving access for inspection and cleaning.
Clean-Out Pockets
Small sediment traps located at intervals along the drainage system simplify maintenance and provide convenient locations where dense particles, including gold, may naturally settle.
Wear Protection
Areas exposed to continuous abrasion from crushed quartz should incorporate wear-resistant liners or protective coatings to extend service life.
Rainwater Management
Roof structures or diversion drains should prevent excessive rainwater from unnecessarily entering the slurry recovery system.
Emergency Overflow
An emergency overflow should be incorporated to safely handle unusual conditions such as blocked channels or exceptionally heavy rainfall while maintaining containment of mineral-bearing material.
Structural Considerations
Because mineral processing equipment imposes substantial static and dynamic loads, the reinforced concrete slab should be designed with adequate thickness and reinforcement. Expansion joints should be included where appropriate to accommodate thermal movement and reduce the risk of uncontrolled cracking. Foundations beneath heavy equipment such as jaw crushers and mills may require local thickening or isolated reinforced pads to ensure long-term structural stability.
Operational Benefits
The integrated platform provides numerous operational advantages:
- Complete containment of mineral-bearing slurry.
- Reduced loss of gold through accidental spills.
- Continuous gravity drainage without pumps.
- Cleaner and safer working conditions.
- Easier equipment maintenance and housekeeping.
- Lower operating costs.
- Improved environmental protection.
- Additional recovery of valuable minerals from floor drainage.
- Flexible arrangement of processing equipment.
- Long service life with minimal maintenance.
Conclusion
The mineral processing platform developed under the Start Your Own Gold Mine Program represents a practical and innovative approach to improving the efficiency, cleanliness, and profitability of small-scale and medium-scale mineral processing plants. By integrating the working floor, drainage network, containment berms, and recovery system into a single engineered structure, the platform ensures that every slurry spill is captured and directed by gravity toward an additional recovery stage rather than being lost to the surrounding environment.
The concept recognizes an often-overlooked source of mineral loss: the processing floor itself. In many conventional plants, spilled slurry becomes waste as it soaks into the ground or dries on the surface. In this design, however, the floor becomes an extension of the processing circuit, continuously collecting and returning valuable material for recovery. This not only increases overall gold recovery but also reduces environmental impact, lowers housekeeping costs, and creates a cleaner and safer workplace.
Simple, robust, and requiring no complex mechanical systems, the platform is particularly well suited to remote mining operations where reliability, ease of maintenance, and low operating costs are essential. With thoughtful engineering refinements such as cross slopes, wider channels, removable grates, sediment clean-out pockets, and wear-resistant linings, the design provides a durable foundation for modern gravity-based mineral processing facilities and reflects the practical, field-oriented philosophy of the Start Your Own Gold Mine Program.
