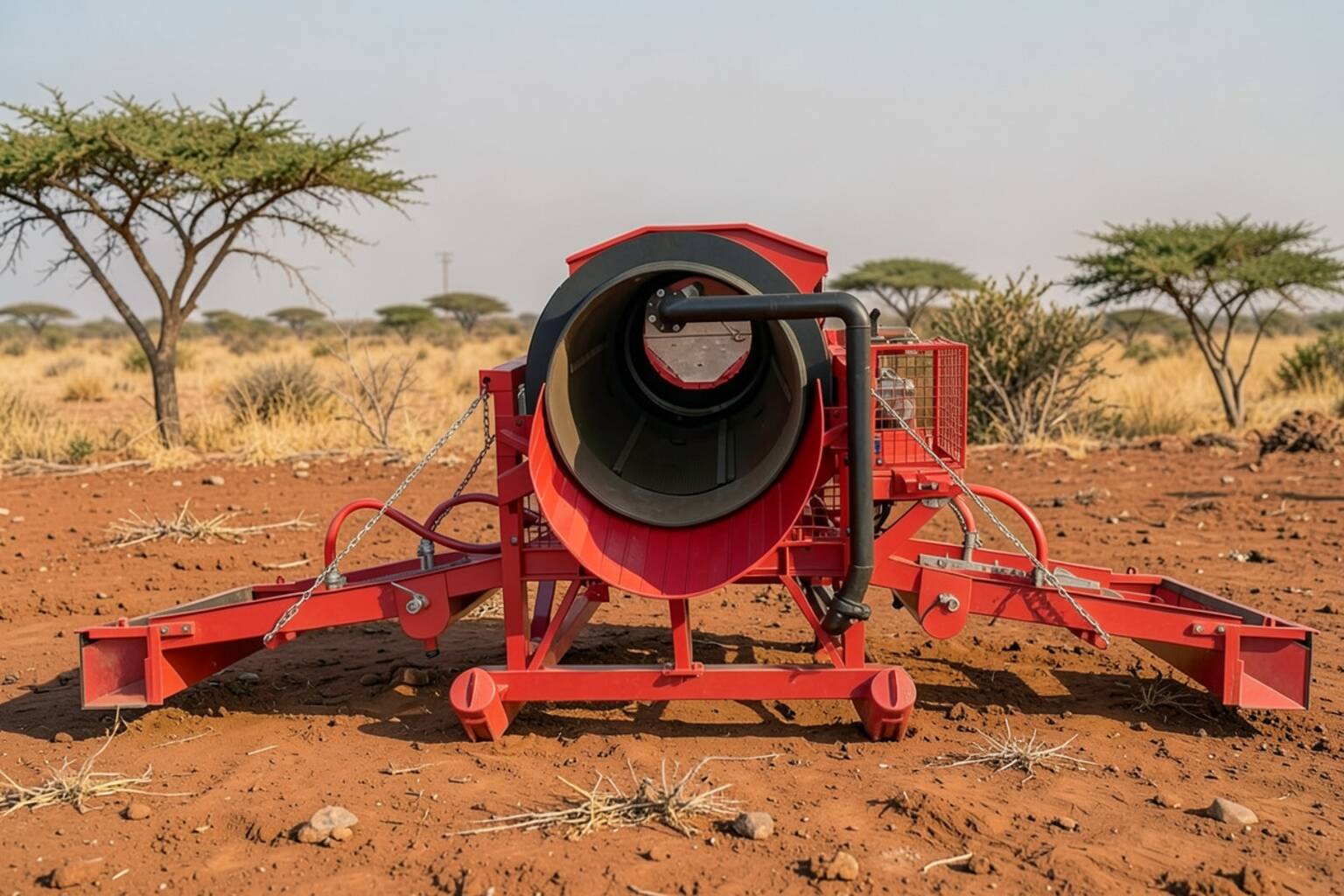

SYOGM Trommel Wash Plant 15 tonnes per hour, front view (exit), in the field


SYOGM Trommel Wash Plant 15 tonnes per hour, front view (exit), in the field
============================================================================









SYOGM Trommel Wash Plant 15 tonnes per hour, front view (exit), in the field



SYOGM Trommel Wash Plant 15 tonnes per hour, front view (exit), in the field




This image depicts a SYOGM Trommel Wash Plant, specifically designed for processing ore at a rate of 15 tonnes per hour. The machine is presented in a front view, showing its exit side, and is situated in an open, arid field environment.

**Key Visual Elements:**

* **Machine Structure:** The central component is a large, red-painted cylindrical trommel drum, which appears to be made of heavy-duty steel or composite material. It is mounted on a robust red steel frame.
* **Hopper/Chute:** Extending from both the left and right sides of the main frame are wide, red metal chutes or hoppers. These are likely used for feeding material into the trommel or for collecting washed output. They are secured with chains.
* **Drum Interior:** The interior of the trommel drum is visible, showing a dark lining (possibly rubber or wear-resistant material) and internal baffles or lifters to agitate the material. A black pipe or conduit runs over the top of the drum opening.
* **Support and Stability:** The entire unit sits on a sturdy frame with four small, red rubber-tired wheels or feet for mobility and stability on the uneven ground.
* **Surroundings:** The plant is located in a dry, dusty landscape with reddish-brown soil. Sparse, dry grass and scattered rocks are visible on the ground. In the background, there are acacia-like trees, typical of savanna or semi-arid regions, under a hazy sky. This setting suggests the equipment is deployed for mining or mineral processing operations in a remote location.

**Contextual Interpretation:**

The "front view (exit)" description indicates that this is likely where the washed, separated material (such as fine ore or slurry) would be discharged. The trommel wash plant is a crucial piece of equipment in small-scale mining, used to wash away clay and silt from raw ore to recover valuable minerals. The 15 tonnes per hour capacity suggests it's a medium-sized unit suitable for artisanal or small-scale mining operations. The outdoor, field setting confirms it is a mobile or semi-portable piece of industrial machinery designed for on-site use in mining areas.
