SYOGM Trommel Wash Plant 15 tonnes per hour, view on sluices in the field (blue)


SYOGM Trommel Wash Plant 15 tonnes per hour, view on sluices in the field (blue)
================================================================================









SYOGM Trommel Wash Plant 15 tonnes per hour, view on sluices in the field (blue)



SYOGM Trommel Wash Plant 15 tonnes per hour, view on sluices in the field (blue)

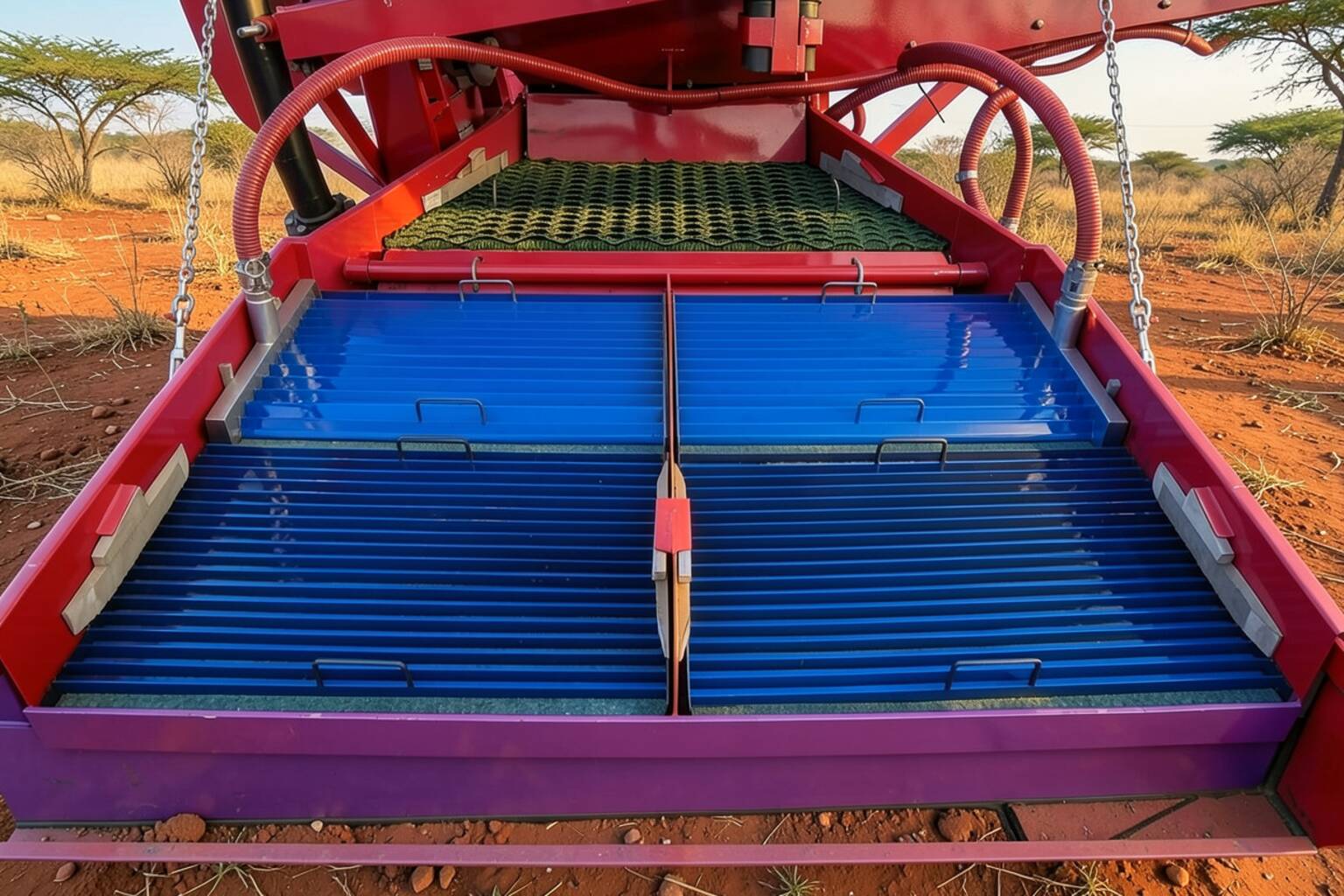

This image shows a close-up, eye-level view of the sluicing section of a SYOGM Trommel Wash Plant, specifically a 15-tonne-per-hour model designed for gold or mineral processing.

The focus is on the **sluices**, which are the long, rectangular channels painted a bright, glossy blue. These sluices are arranged in a two-tiered configuration:

* **Top Tier:** Two wide, flat sluice boxes with solid blue surfaces. Each has a small metal handle for access or adjustment.
* **Bottom Tier:** Two narrower, ribbed sluice boxes directly below the top ones. The ridges (riffles) are designed to trap heavy minerals like gold as water flows over them. A central divider separates the left and right sides of this lower tier.

The entire assembly is framed by a sturdy red metal chassis. Above the blue sluices, you can see a green, mesh-like screen or filter material, likely part of the trommel feed system. Large, flexible red hoses snake along the top structure, presumably for washing or rinsing the plant components. The machine is suspended by heavy-duty silver chains on either side, suggesting it is mounted on a larger truck or trailer chassis not fully visible in the frame.

The background reveals an outdoor, arid environment with reddish-brown soil and sparse, dry vegetation, typical of mining regions in Africa or Australia where such equipment is often deployed. The lighting suggests it's daytime, with clear skies.












The London or gold world market price as of Monday, April 13 2026, 18:06:09 was US $153.20 per gram or US $153200.88 per kilogram.

SYOGM Advance Gold Wash Plant Design

SYOGM Advance Gold Wash Plant Design

The SYOGM Advance Wash Plant is an innovative gold recovery system designed for efficient extraction of gold particles from dirt and alluvial deposits. It incorporates components like excavators, wash hoppers, grizzly bars, screen units, sluices, and a concentrate room to optimize the washing process and maximize gold recovery. The plant allows miners to extract gold effectively at various scales while minimizing effort and resources. Its design includes advanced technology for fine gold extraction using Cleangold inserts and ensures secure storage of concentrates through a monitored concentrate room.
