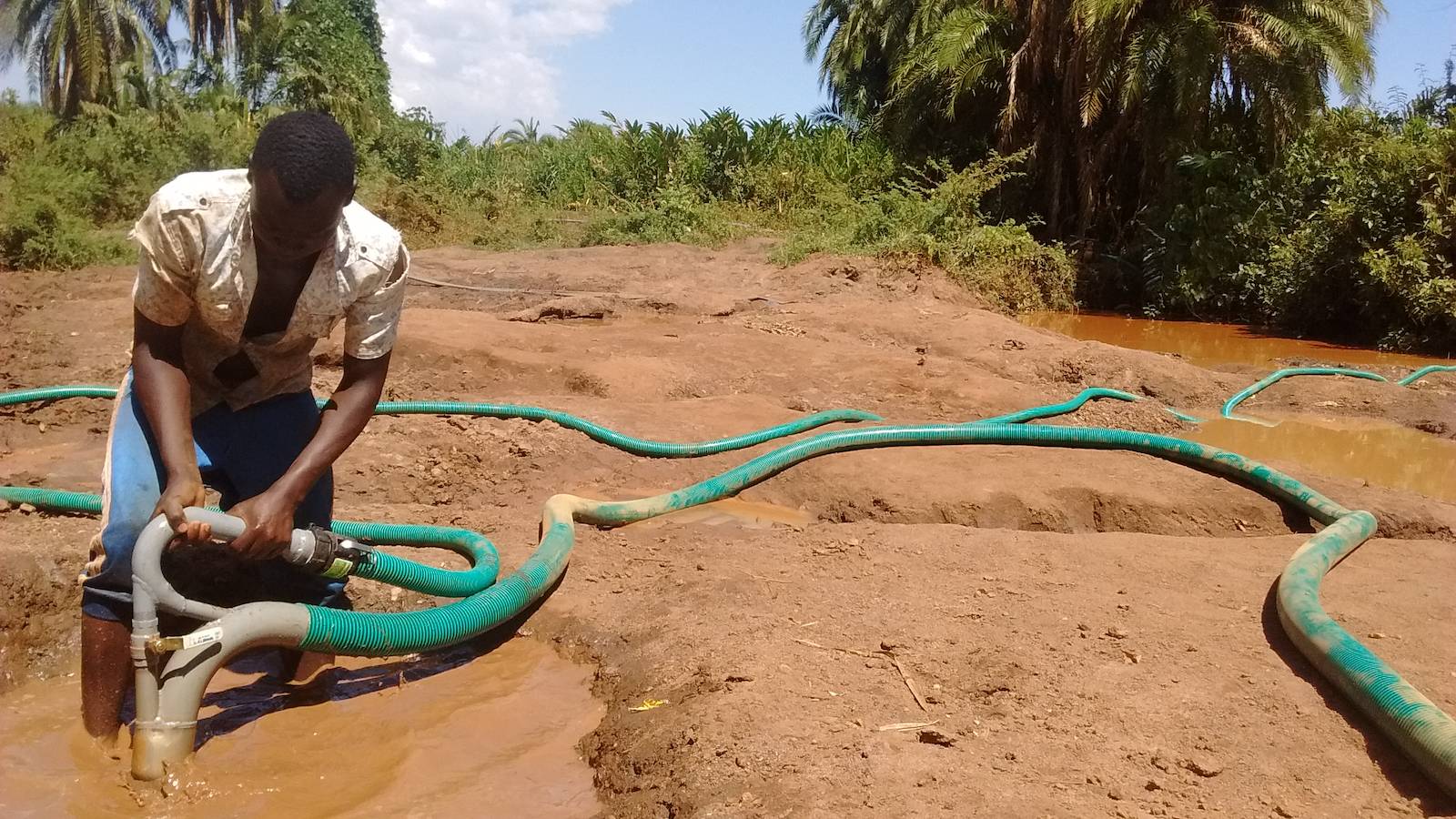

Miner working with hydro-nozzle in Uganda

Miner working with hydro-nozzle in Uganda

Gold dredging is a method of gold recovery that involves vacuuming riverbed materials like sand, gravel, and dirt using a sediment removal system, typically mounted on a floating platform. One of the key tools used in gold dredging is the hydro-nozzle, which serves as the primary means of material collection.

A hydro-nozzle, also known as a suction nozzle, is designed to create a venturi effect, which occurs when water is forced through a constricted section of the pipe. This mechanism is powered by a water pump that pushes water through the pipe at a high speed. As water is forced through the nozzle, the pressure drops and creates a vacuum at the nozzle’s intake. This vacuum is powerful enough to suck up sediment from the riverbed, including sand mixed with potential gold particles.

The process works as follows:

  1. A water pump takes in water and pumps it at high pressure through a hose towards the hydro-nozzle.
  2. The hydro-nozzle accelerates the water to create a vacuum through the venturi effect, which happens as water exits the constriction into a wider outflow pipe.
  3. Under pressure, the sand, gravel, and other materials are sucked up through the nozzle along with water.
  4. This slurry of water and sediment is directed into a sluice box, which is positioned on the floating platform or nearby on the riverbank.

The sluice box is crucial to the gold recovery process. It is a long, inclined trough with riffles, a carpet, or other trapping mechanisms on the bottom. As the sediment-loaded water passes through the sluice, the heavier gold particles settle to the bottom and are trapped by the riffles or matting, while the lighter sand and gravel wash out of the end of the sluice.

Operators who use a hydro-nozzle system must be accustomed to the physical handling of the equipment, as maneuvering the nozzle can be challenging due to the forces exerted by the pumped water and sucked materials. Efficiency improves with experience, as the miner learns to position the nozzle effectively, covering different areas of the riverbed to maximize gold recovery.

To mitigate environmental impacts, it is important for gold dredgers to follow regulations designed to protect the ecosystem. This includes avoiding disturbance of riverbanks, respecting local wildlife, and not operating in ecologically sensitive areas. Additionally, the discharge of sediment back into the river must be managed judiciously to minimize the effect on water clarity and aquatic habitats.

Gold dredging with a hydro-nozzle system can be a very effective means of placer mining, allowing prospectors to process large quantities of sediment and improve their chances of recovering small flakes and nuggets of gold that are otherwise difficult to extract by traditional panning methods.
